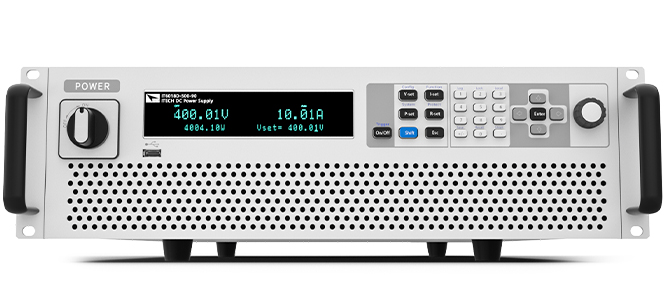

IT6000D系列大功率可编程直流电源

Name: IT6000D系列大功率可编程直流电源
Price: 999999

¥999,999.00

品牌

ITECH/艾德克斯

IT6000D系列

IT6005D-80-150

IT6010D-80-300

IT6015D-80-450

IT6030D-80-900

IT6045D-80-1350

IT6060D-80-1800

IT6075D-80-2040

IT6090D-80-2040

IT6105D-80-2040

IT6120D-80-2040

IT6006D-300-75

IT6012D-300-150

IT6018D-300-225

IT6036D-300-450

IT6054D-300-675

IT6072D-300-900

IT6090D-300-1125

IT6108D-300-1350

IT6126D-300-1575

IT6144D-300-1800

IT6006D-500-40

IT6012D-500-80

IT6018D-500-120

IT6036D-500-240

IT6054D-500-360

IT6072D-500-480

IT6090D-500-600

IT6108D-500-720

IT6126D-500-840

IT6144D-500-960

IT6006D-800-25

IT6012D-800-50

IT6018D-800-75

IT6036D-800-150

IT6054D-800-225

IT6072D-800-300

IT6090D-800-375

IT6108D-800-450

IT6126D-800-525

IT6144D-800-600

IT6018D-1500-40

IT6036D-1500-80

IT6054D-1500-120

IT6072D-1500-160

IT6090D-1500-200

IT6108D-1500-240

IT6126D-1500-280

IT6144D-1500-320

IT6018D-2250-25

IT6036D-2250-50

IT6054D-2250-75

IT6072D-2250-100

IT6090D-2250-125

IT6108D-2250-150

IT6126D-2250-175

IT6144D-2250-200

数量
- -
- +

咨询此商品

IT6000D系列提供单路输出可编程直流电源，适用于在实验室和自动测试系统中提供大功率、稳定的直流供电。IT6000D系列电源的自动量程输出特性，可在整个功率范围内提供更为宽泛的电压和电流组合，具备灵活性。IT6000D系列应用范围宽广，采用SiC技术，电流范围最高达8000A及电压范围最高达2250V。同时，电源提供多种标准通讯接口，简化和加快测试开发; 紧凑的3U设计有效节省机架空间。如需更高的输出功率，可通过简易并联多台相同规格设备，以搭建总功率高达2MW的电源系统。

产品咨询客户经理

仪器解决方案：付朋电话:13717737785Q Q:583771539

商务合作客户经理

商务咨询合作：冯先生电话:18929381667Q Q:2393692460

产品特点

♦ 电压范围高达2250V

♦ 电流输出范围：0至2040A（单机柜），0至8000A（机柜间并联）

♦ 主从并联，功率可扩展至2MW

♦ 采用高频率开关式结构，支持定电压（CV）、定电流(CC)自动切换功能

♦ 采用SiC技术，3U体积可达18kW

♦ 电源效率高达92%

♦ 各种保护功能（支持OVP、OCP、OPP、OTP，掉电及输入欠压保护）

♦ 支持数据记录器功能，可连续记录输出电压和电流的最大值、最小值、平均值参数，并可自动依序执行

♦ 支持外部数据记录功能，内部缓冲，PC定期向机器读取测量数据

♦ 标配USB/CAN/LAN/数字IO接口，以及选配GPIB/模拟量&RS232接口

♦ 支持SCPI协议，内置Web服务器

产品功能与优势

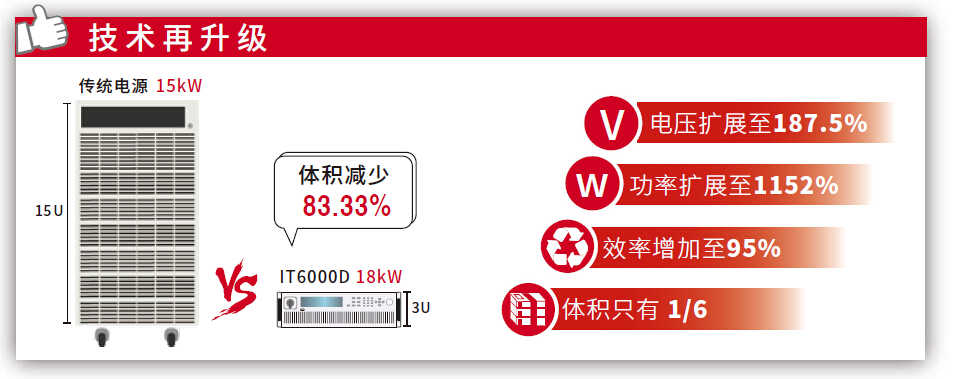

3U/18kW高功率密度

IT6000D系列采用SiC技术，可达3U 18kW的高功率密度，具有低输出噪音及涟波、优异的市电扰动调节、负载调节与快速瞬时响应。其具有大范围的电压80V~2250V，电流510A~30A的组合，适合从设计到产品测试生产流程的每一测试验证用电源。

201812051732593259

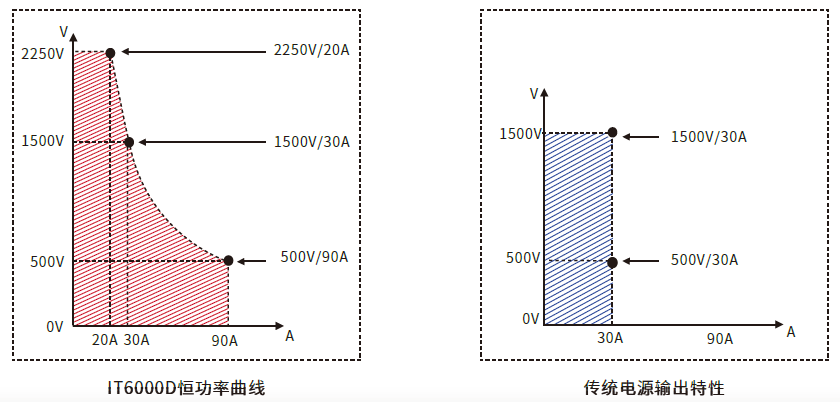

输出特性

输出特性相较于传统固定范围输出直流电源，IT6000D系列在功率区间内，各种电压、电流的组合都能够以全功率输出，单台电源涵盖传统电源3~5台的应用，三台电源则可覆盖传统10~13台，大幅降低电源系统搭建的复杂度及占用空间。

201903041719351935

型号	电压	电流	功率	分辨率	精度	接口	尺寸
IT6005D-80-150	80V	150A	5kW	0.001V/0.001A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS232	3U
IT6010D-80-300	80V	300A	10kW	0.001V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS232	3U
IT6015D-80-450	80V	450A	15kW	0.001V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS232	3U
IT6030D-80-900	80V	900A	30kW	0.001V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS232	6U
IT6045D-80-1350	80V	1350A	45kW	0.001V/0.1A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS232	15U
IT6060D-80-1800	80V	1800A	60kW	0.001V/0.1A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS232	15U
IT6075D-80-2040	80V	2040A	75kW	0.001V/0.1A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS232	27U
IT6090D-80-2040	80V	2040A	90kW	0.001V/0.1A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS232	27U
IT6105D-80-2040	80V	2040A	105kW	0.001V/0.1A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS232	27U
IT6120D-80-2040	80V	2040A	120kW	0.001V/0.1A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS232	27U
IT6006D-300-75	300V	75A	6KW	0.01V/0.001A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS232	3U
IT6012D-300-150	300V	150A	12KW	0.01V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS232	3U
IT6018D-300-225	300V	225A	18KW	0.01V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS232	3U
IT6036D-300-450	300V	450A	36kW	0.01V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS232	6U
IT6054D-300-675	300V	675A	54kW	0.01V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS232	15U
IT6072D-300-900	300V	900A	72kW	0.01V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS232	15U
IT6090D-300-1125	300V	1125A	90kW	0.01V/0.1A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS232	27U
IT6108D-300-1350	300V	1350A	108kW	0.01V/0.1A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS232	27U
IT6126D-300-1575	300V	1575A	126kW	0.01V/0.1A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS232	27U
IT6144D-300-1800	300V	1800A	144kW	0.01V/0.1A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS232	27U
IT6006D-500-40	500V	40A	6kW	0.01V/0.001A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS232	3U
IT6012D-500-80	500V	80A	12kW	0.01V/0.001A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS232	3U
IT6018D-500-120	500V	120A	18kW	0.01V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS232	3U
IT6036D-500-240	500V	240A	36kW	0.01V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS232	6U
IT6054D-500-360	500V	360A	54kW	0.01V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS232	15U
IT6072D-500-480	500V	480A	72kW	0.01V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS232	15U
IT6090D-500-600	500V	600A	90kW	0.01V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS232	27U
IT6108D-500-720	500V	720A	108kW	0.01V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS232	27U
IT6126D-500-840	500V	840A	126kW	0.01V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS232	27U
IT6144D-500-960	500V	960A	144kW	0.01V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS232	27U
IT6006D-800-25	800V	25A	6kW	0.01V/0.001A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS232	3U
IT6012D-800-50	800V	50A	12kW	0.01V/0.001A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS232	3U
IT6018D-800-75	800V	75A	18kW	0.01V/0.001A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS232	3U
IT6036D-800-150	800V	150A	36kW	0.01V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS232	6U
IT6054D-800-225	800V	225A	54kW	0.01V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS232	15U
IT6072D-800-300	800V	300A	72kW	0.01V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS232	15U
IT6090D-800-375	800V	375A	90kW	0.01V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS232	27U
IT6108D-800-450	800V	450A	108kW	0.01V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS232	27U
IT6126D-800-525	800V	525A	126kW	0.01V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS232	27U
IT6144D-800-600	800V	600A	144kW	0.01V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS232	27U
IT6018D-1500-40	1500V	40A	18kW	0.1V/0.001A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS232	3U
IT6036D-1500-80	1500V	80A	36kW	0.1V/0.001A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS232	6U
IT6054D-1500-120	1500V	120A	54kW	0.01V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS232	15U
IT6072D-1500-160	1500V	160A	72kW	0.01V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS232	15U
IT6090D-1500-200	1500V	200A	90kW	0.01V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS232	27U
IT6108D-1500-240	1500V	240A	108kW	0.01V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS232	27U
IT6126D-1500-280	1500V	280A	126kW	0.01V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS232	27U
IT6144D-1500-320	1500V	320A	144kW	0.01V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS232	27U
IT6018D-2250-25	2250V	25A	18kW	0.1V/0.001A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS232	3U
IT6036D-2250-50	2250V	50A	36kW	0.1V/0.001A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS232	6U
IT6054D-2250-75	2250V	75A	54kW	0.1V/0.001A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS232	15U
IT6072D-2250-100	2250V	125A	72kW	0.01V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS232	15U
IT6090D-2250-125	2250V	150A	90kW	0.01V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS232	27U
IT6108D-2250-150	2250V	175A	108kW	0.01V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS232	27U
IT6126D-2250-175	2250V	200A	126kW	0.01V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS232	27U
IT6144D-2250-200	2250V	225A	144kW	0.01V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS232	27U

IT6000D系列产品单页[请登陆后下载和查看]

IT6000D系列用户手册[请登陆后下载和查看]

IT6000D系列通讯协议[请登陆后下载和查看]

IT-E165A用户手册[请登陆后下载和查看]

IT-E165B用户手册[请登陆后下载和查看]
