性能特点

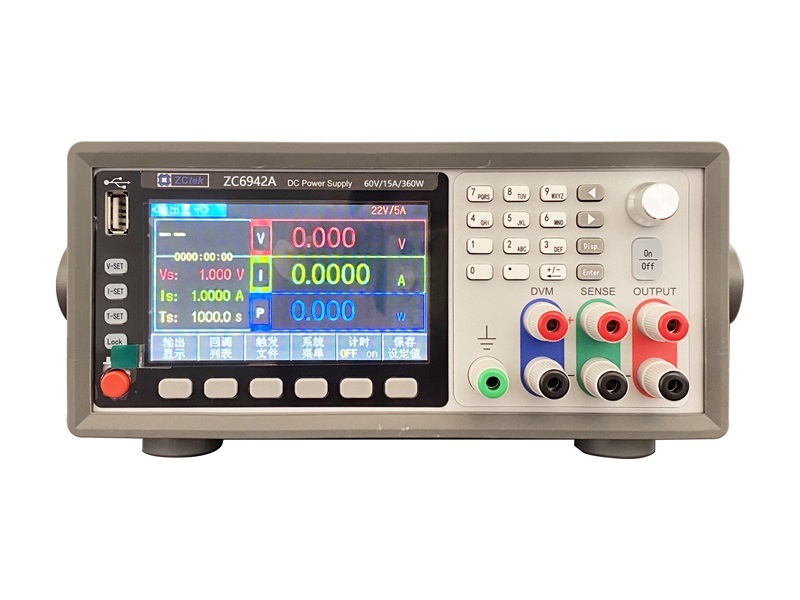

- 4.3寸24位真彩色液晶屏，480x272分辨率
- 线性设计、宽范围输出
- 高精度高稳定性、低涟波、低噪声、较快电压上升沿

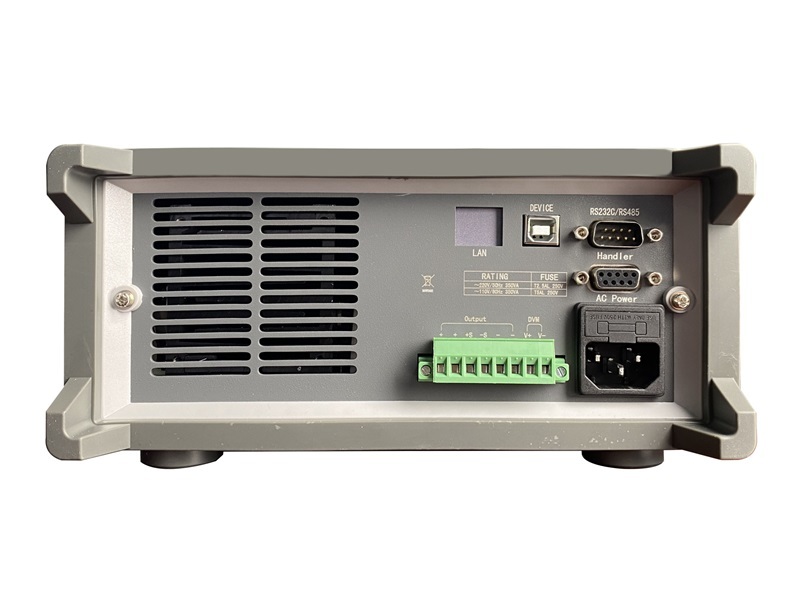

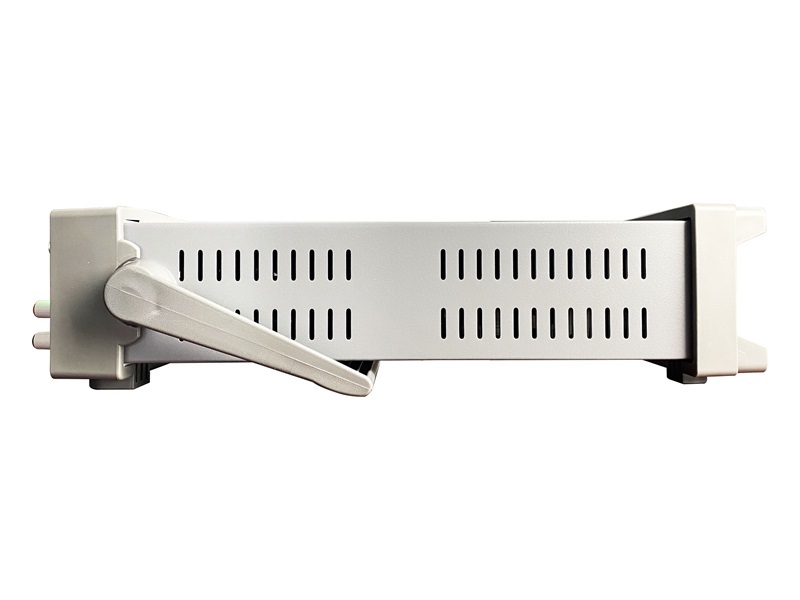

- 1/2 2U超小体积，前后面板(四端)输出与采样端
- 电压测试功能(DVM，5位半数字电压表)
- 可集成8路温度测试模块(支持K、T、J、N、E、S、R、B多种热电偶)
- 清新简洁系统设置、中英文操作界面
- 强大的编程能力，1000组设置状态记忆保存和调用
- 20个触发文件、每个文件可以多达1000种测试系列，编程循环输出
- 定时输出：时间(0.1-9999.99s)
- 灵活方便的电压、电流、时间设置方式(旋钮或数字键盘)
- 远端补偿功能
- 测量数据结果可用U盘保存
- 截屏功能，数据记录和参数保存功能
- 可通过USB HOST升级仪器固件程序
- Handler接口用于联机操作
- 智能温控风扇、降低使用噪声
- 过电压、过电流、过温度保护
应用范围
- 研发与设计验证通用测试
- 生产线工作台常规测试、维修
- 自动化设备集成测试
- 太阳能光伏模拟测试
- 新能源汽车模拟测试
- 教学实验室
技术参数
| 型号 | ZC6921A | ZC6922A | ZC6932A | ZC6933A | ZC6941A | ZC6942A | ZC6943A | ZC6952A | ZC6953A | ||
|
输出范围 (0-40℃) |
电压 | 20V | 30V | 60V | 120V | 30V | 60V | 120V | 60V | 120V | |
| 电流 | 30A | 20A | 10A | 5A | 30A | 15A | 6A | 25A | 10A | ||
| 功率 | 200W | 200W | 200W | 200W | 360W | 360W | 360W | 600W | 600W | ||
| 负载调整率
±(%输出+偏置) |
电压 | ≤0.01%+20mV | ≤0.01%+25mV | ≤0.01%+10mV | ≤0.01%+20mV | ≤0.01%+20mV | ≤0.01%+30mV | ≤0.01%+8mv | ≤0.01%+30mV | ≤0.0%+25mV | |
| 电流 | ≤0.01%+20mA | ≤0.01%+15mA | ≤0.05%+4mA | ≤0.05%+6mA | ≤0.01%+20mA | ≤0.05%+6mA | ≤0.01%+6mA | ≤0.01%+10mA | ≤0.05%+10mA | ||
| 电源调整率
±(%输出+偏置) |
电压 | ≤0.01%+20mV | ≤0.01%+20mV | ≤0.01%+10mV | ≤0.01%+20mV | ≤0.01%+20mV | ≤0.01%+30mV | ≤0.01%+8mv | ≤0.01%+30mV | ≤0.0%+25mV | |
| 电流 | ≤0.01%+20mA | ≤0.01%+15mA | ≤0.05%+4mA | ≤0.05%+6mA | ≤0.01%+20mA | ≤0.05%+6mA | ≤0.01%+6mA | ≤0.01%+10mA | ≤0.05%+10mA | ||
| 设定值解析度 | 电压 | 1mV(<100V), 10mV(>100V) | |||||||||
| 电流 | 0.1mA(<10A),1mA(>10A) | ||||||||||
| 回读值解析度 | 电压 | 1mV(<100V), 10mV(>100V) | |||||||||
| 电流 | 0.1mA(<10A),1mA(>10A) | ||||||||||
| 设定值精度12月(25℃±5℃) | 电压 | ≤0.05%+10mV | ≤0.05%+10mV | ≤0.03%+5mV | ≤0.04%+30mV | ≤0.05%+10mV | ≤0.03%+5mV | ≤0.05%+15mV | ≤0.03%+5mV | ≤0.03%+20mV | |
| 电流 | ≤0.1%+30mA | ≤0.1%+20mA | ≤0.1%+10mA | ≤0.1%+10mA | ≤0.1%+30mA | ≤0.1%+15mA | ≤0.1%+20mA | ≤0.1%+25mA | ≤0.1%+25mA | ||
| 回读值精度12月(25℃±5℃) | 电压 | ≤0.05%+10mV | ≤0.05%+10mV | ≤0.03%+5mV | ≤0.04%+30mV | ≤0.05%+10mV | ≤0.03%+5mV | ≤0.05%+15mV | ≤0.03%+5mV | ≤0.03%+20mV | |
| 电流 | ≤0.1%+30mA | ≤0.1%+20mA | ≤0.1%+10mA | ≤0.1%+10mA | ≤0.1%+30mA | ≤0.1%+15mA | ≤0.1%+20mA | ≤0.1%+25mA | ≤0.1%+25mA | ||
| 纹波与噪声
(20Hz-2MHz) |
差模电压 | ≤15mVpp | ≤15mVpp | ≤8mVp-p | ≤30mVp-p | ≤15mVpp | ≤15mVp-p | ≤20mVpp | ≤20mVp-p | ≤50mVp-p | |
| 差模电流 | ≤10mAms | ≤10mAms | ≤6mAmms | ≤6mAmms | ≤12mAms | ≤8mAms | ≤12mAms | ≤15mAms | ≤15mAms | ||
| 上升时间 | ≤100ms | ≤100ms | ≤150ms | ≤200ms | ≤100ms | ≤200ms | ≤150ms | ≤150ms | ≤150ms | ||
| 下降时间 | ≤2s | ≤2s | ≤2s | ≤3.5s | ≤2s | ≤2s | ≤3.5s | ≤2s | ≤3.5s | ||
| DVM | 显示精度 | 0.05%+10mV | 0.05%+10mV | 0.03%+5mV | 0.04%+30mV | 0.05%+10mV | 0.03%+5mV | 0.05%+15mV | 0.03%+5mV | 0.03%+20mV | |
| 显示分辨率 | 1mV | ||||||||||
| 输入电压范围 | 20V | ||||||||||
| 存储 | 20组触发输出。每组1000个步骤，1000组设定记忆 | ||||||||||
标配RS232/RS485 USB HOST USB DEVICE
选配GPIB LAN HANDLER 温度测试模块
注：支持SCPI和MODBUS协议
上架体积(mm)：215(W)x88(H)x400(D)
外形体积 (mm)：235(W)x105(H)x430(D)
净重：3.6Kg
